THE LASER WAVELENGTH:1070nm±5nm
LASER DEVICE:Continuous fiber laser
AVERAGE OUTPUT POWER:500W
THE MINIMUM SPOT:0.1mm
FIBER LENGTH :5m
Used in the bathroom industry: water pipe joints, reducer joints, tees, valves, battery industry: lithium batteries, battery packs, laser welding of electrodes, glasses industry: stainless steel, titanium alloy and other materials for the buckle, frame and other positions Precision welding, hardware industry: impeller, kettle, water cup, stainless steel bowl, sensor, diode, aluminum alloy, mobile phone battery, door handle, shelf and so on.

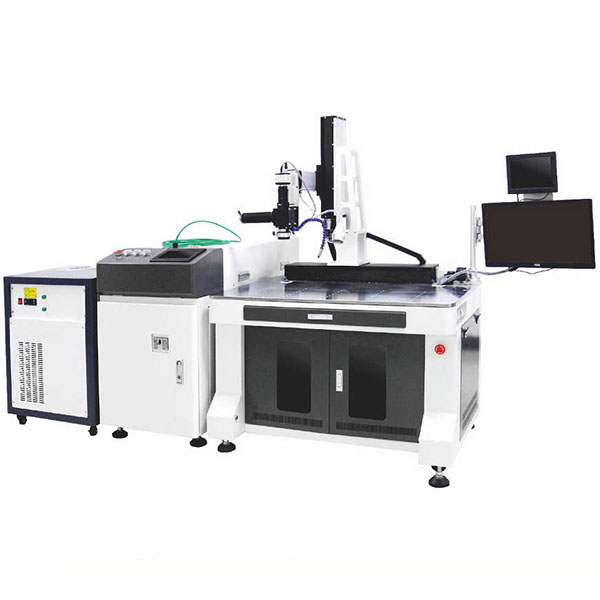

The machine uses a 500 watt fiber laser, with high electric-optical conversion efficiency, long laser life.
The laser beam quality is very good, the welding speed is fast ,always more than 5 times of the traditional fiber transmission laser welding machine, the weld is fine, the depth is large, the taper is small, the precision is high, can fully meet the needs of users in different industries, the welding is firm ,smooth and flat.
The machine has low energy consumption, maintenance-free, high stability, and long-term use can save users a lot of processing costs.
Can be equipped with three-axis automatic workbench, large workbench, platform XY dual-axis electric module, Z-axis with power-off brake motor, it can also be equipped with rotating shaft, can realize special-shaped three-dimensional laser welding: dimension products, fast speed, long life accuracy.
Laser beam can be separated. Suitable for different processing applications, mulch-station processing applications, can be widely used in flexible processing industries such as spot welding, continuous welding and laser welding.
Can be customized automatic fixture, can be combined with assembly line, photoelectric sensor,pneumatic fixture, etc. for automatic processing, mass production of products.
|laser device||Continuous fiber laser|
|The laser wavelength||1070nm±5nm|
|Average output power||500W|
|The minimum spot||0.1mm|
|Cold power of cold water table||1.5P|
|Demand for electricity||220V±5V 50Hz/40A|
|Range of electric working table||300×300×500mm|
|External dimensions/net weight||Host computer:1050*500*900mm||175kg|
