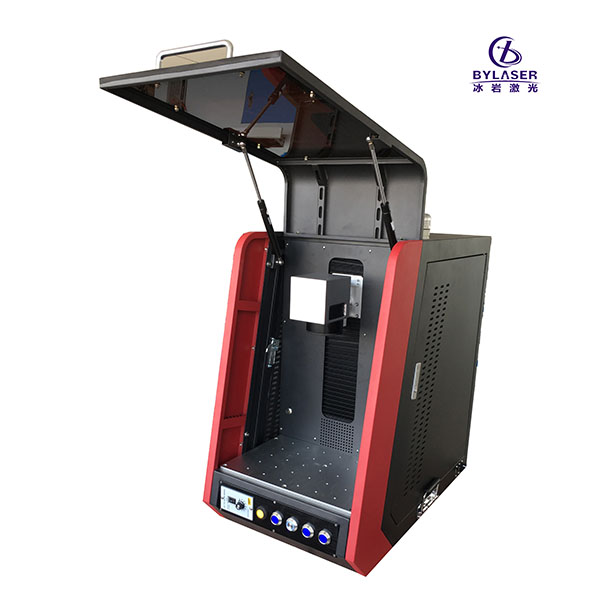

MODEL:BY-GS-C2
LASER TYPE:RAYCUS / JPT / IPG
MARKING SPEED:≤7m/s(275.6in/s)
MINIMUM LINE WIDTH:0.01mm(0.0004in)Depends on material
MINIMUM CHARACTER:0.2mm(0.008in) Depends on material
ELECTRICAL REQUIREMENTS:110V-240V/50Hz-60Hz
Suitable for all metal materials, such as common metals (iron, copper, etc.), rare metals (gold, silver, platinum, titanium, etc.), metal oxides (alumina, zirconia, etc.), special surface treatment (electroplating, etc.), and is also suitable for various non-metallic materials, such as ABS, ink, nylon, PVC, epoxy resin, etc.
Fast speed, more stability laser mode
Long life,the theoretical working time is of 100,000 hours;
High photoelectric conversion efficiency, low power consumption;
Simple operating system, flexible and convenient typesetting, compatible with AUTOCAD, CORELDRAW, PHOTOSHOP and other software output files;
Chinese and English characters, Numbers, bar codes, qr codes, graphics is available ,support PLT, DXF, AI, BMP and other file formats, SHX, TTF font library can be directly used;
The system can automatically encode and print the serial number, batch number, date and so on.
| BY-GS FIBERI LASER MARKING MACHINE | |||
| Type | 20W | 30W | 50W |
| Marking Area | 110×110mm(4.3×4.3in) | ||
| 150×150mm(5.9×5.9in) Optional | |||
| 175×175mm(6.9×6.9in) | |||
| Working Area | 200*200mm | ||
| MaximumThickness | 300mm(11.8in)@110×110mm | ||
| 250mm(9.8in)@150×150mm | |||
| 206mm(8.1in)@175×175mm | |||
| Laser Type | RAYCUS / JPT / IPG | ||
| Repetition Rate | 20-80kHZ@RAYCUS | ||
| 1-400kHZ@JPT | |||
| 1.6-1000kHZ@IPG | |||
| Marking Speed | ≤7m/s(275.6in/s) | ||
| Engraving Depth | ≤0.2mm(0.008in) | ≤0.4mm(0.016in) | ≤1mm(0.024in) |
| Minimum Line Width | 0.01mm(0.0004in)Depends on material | ||
| Minimum Character | 0.2mm(0.008in) Depends on material | ||
| Electrical Requirements | 110V-240V/50Hz-60Hz (According to local electricity supply). | ||
| Power consumption | 500W | 800W | 1000W |
| Marking Interface | USB connection. Compatible with Windows XP/Vista/7/8/10. | ||
| Communication Mode For Automation | TCP/IP,IO,RS232. | ||
| Red Dot Pointer | Since the laser beam is invisible,the Red Dot Pointer allows you to have a visual reference for locating where the laser will fire. | ||
