PRODUCT

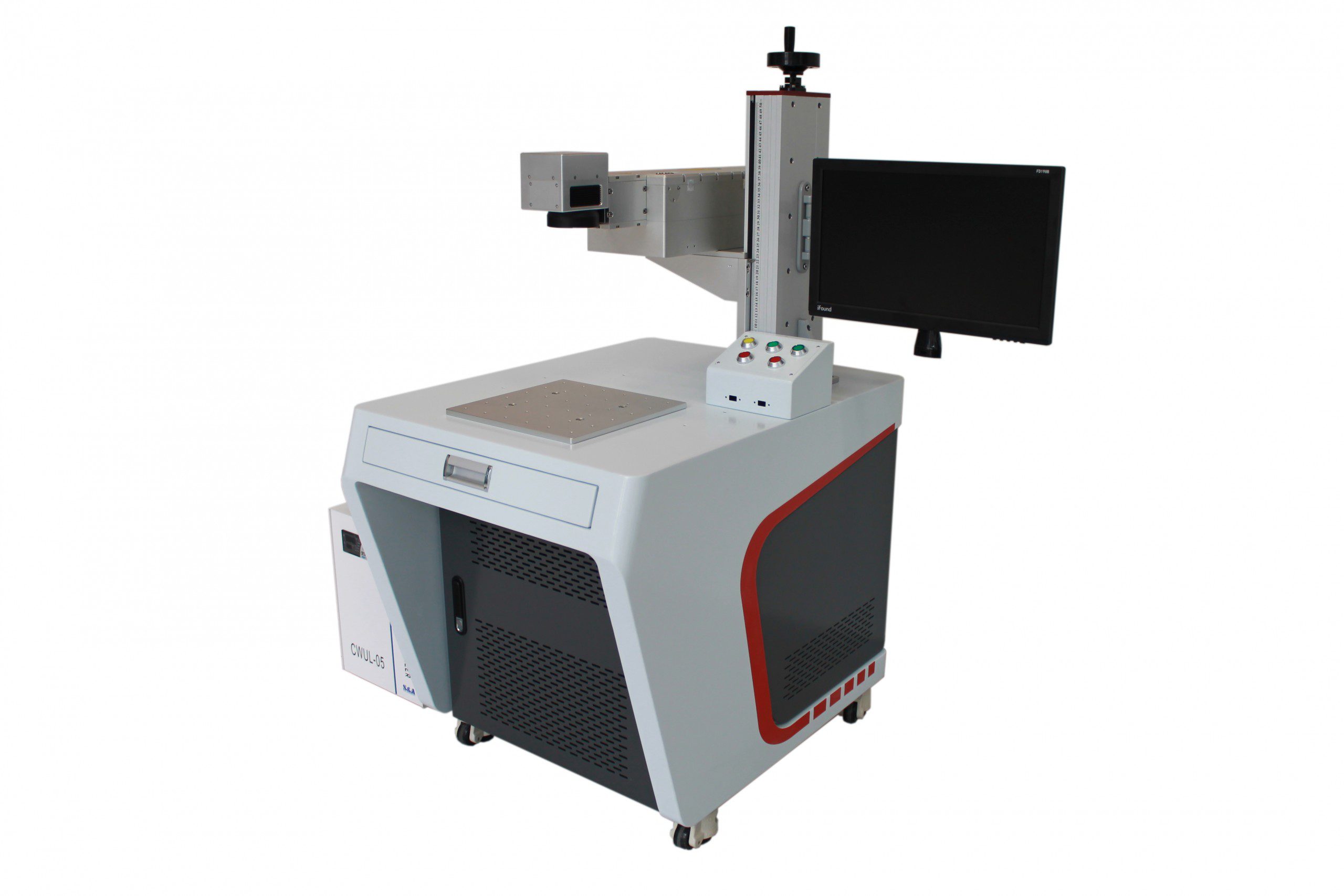

Desktop type UV laser marking machine

MODEL:BY-100GS-A2

LASER TYPE:JPT /HUARAY / INNGU

MARKING SPEED:≤7m/s(275.6in/s)

MINIMUM LINE WIDTH:0.01mm(0.0004in)Depends on material

MINIMUM CHARACTER:0.2mm(0.008in) Depends on material

ELECTRICAL REQUIREMENTS:110V-240V/50Hz-60Hz

APPLICATION

UV laser marking machine is mainly based on its unique low-power laser beam, especially suitable for the high-end market of ultra-fine processing.

It is very suitable for cosmetics, drugs, food and other macro-molecule material packaging surface marking. The marking effect is fine, clear and firmly,and better than ink jet code,no pollution.

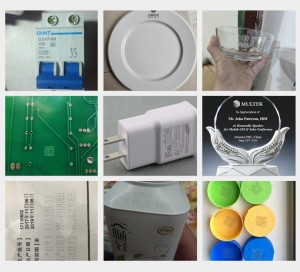

It is widely used in marking and slicing of flexible PCB,silicon wafer micro-hole ,blind hole processing,LCD glass qr code , glassware surface punching, metal surface coating , plastic keys, electronic components, gifts, communication equipment, construction materials ,rubber and other non-metallic materials.

FEATURES

In addition to copper material, suitable for processing of more extensive material.

High quality beam, focusing spot is smaller, that can achieve hyper-fine marking.

Thermal impact area is very small, will not produce thermal effect, will not produce material burning problem.

Fast marking speed and high efficiency.

Stable performance, small size, low power consumption.

PARAMETERS
BY- UV   UV LASER MARKING MACHINE
  3W 5W 10W
Marking Area 110×110mm(4.3×4.3in)
150×150mm(5.9×5.9in)     Optional
175×175mm(6.9×6.9in)
Working Area 200*200mm
Maximum Thickness 300mm(11.8in)@110×110mm
250mm(9.8in)@150×150mm
206mm(8.1in)@175×175mm
Laser Type JPT /HUARAY / INNGU
Repetition Rate 10-150 [email protected]
20-150 [email protected]
1-200 [email protected]
Marking Speed ≤7m/s(275.6in/s)
Engraving Depth ≤0.2mm(0.008in) ≤0.4mm(0.016in) ≤1mm(0.024in)
Minimum Line Width 0.01mm(0.0004in) Depends on material
Minimum Character 0.2mm(0.008in) Depends on material
Electrical Requirements 110V-240V/50Hz-60Hz   (According to local electricity supply).
Power consumption 500W 800W 1000W
Marking Interface USB connection. Compatible with Windows XP/Vista/7/8/10.
Communication Mode For Automation TCP/IP,IO,RS232.
Red Dot Pointer Since the laser beam is invisible,the Red Dot Pointer allows you to have a visual reference for locating where the laser will fire.
Cooling mode Water cooling
