PRODUCT

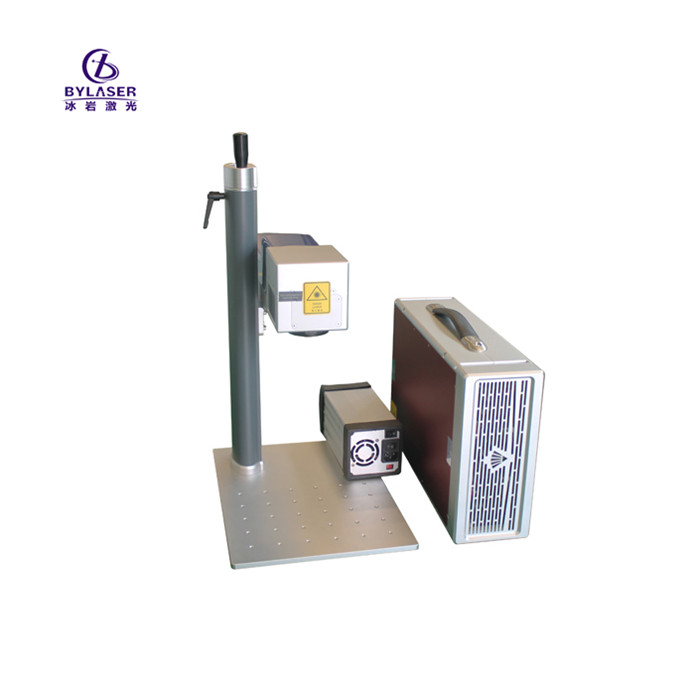

Portable Raycus fiber laser marking machine

MODEL:BY-GS-B4

LASER TYPE:RAYCUS / JPT / IPG

MARKING SPEED:≤7m/s(275.6in/s)

MINIMUM LINE WIDTH:0.01mm(0.0004in)Depends on material

MINIMUM CHARACTER:0.2mm(0.008in) Depends on material

ELECTRICAL REQUIREMENTS:110V-240V/50Hz-60Hz

APPLICATION

Suitable for all metal materials, such as common metals (iron, copper, etc.), rare metals (gold, silver, platinum, titanium, etc.), metal oxides (alumina, zirconia, etc.), special surface treatment (electroplating, etc.), and is also suitable for various non-metallic materials, such as ABS, ink, nylon, PVC, epoxy resin, etc.









FEATURES

Fast speed, more stability laser mode

Long life,the theoretical working time is of 100,000 hours;

High photoelectric conversion efficiency, low power consumption;

Simple operating system, flexible and convenient typesetting, compatible with AUTOCAD, CORELDRAW, PHOTOSHOP and other software output files;

Chinese and English characters, Numbers, bar codes, qr codes, graphics is available ,support PLT, DXF, AI, BMP and other file formats, SHX, TTF font library can be directly used;

The system can automatically encode and print the serial number, batch number, date and so on.

PARAMETERS
BY-GS   FIBERI LASER MARKING MACHINE
Type 20W 30W 50W
Marking Area 110×110mm(4.3×4.3in)
150×150mm(5.9×5.9in)     Optional
175×175mm(6.9×6.9in)
Working Area 200*200mm
MaximumThickness 300mm(11.8in)@110×110mm
250mm(9.8in)@150×150mm
206mm(8.1in)@175×175mm
Laser Type RAYCUS / JPT / IPG
Repetition Rate [email protected]
[email protected]
[email protected]
Marking Speed ≤7m/s(275.6in/s)
Engraving Depth ≤0.2mm(0.008in) ≤0.4mm(0.016in) ≤1mm(0.024in)
Minimum Line Width 0.01mm(0.0004in)Depends on material
Minimum Character 0.2mm(0.008in) Depends on material
Electrical Requirements 110V-240V/50Hz-60Hz   (According to local electricity supply).
Power consumption 500W 800W 1000W
Marking Interface USB connection. Compatible with Windows XP/Vista/7/8/10.
Communication Mode For Automation TCP/IP,IO,RS232.
Red Dot Pointer Since the laser beam is invisible,the Red Dot Pointer allows you to have a visual reference for locating where the laser will fire.
