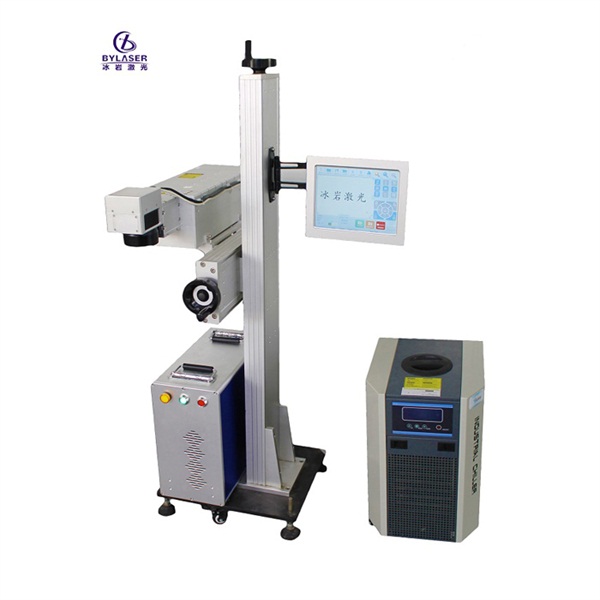

MODEL:BY-100GS-C
LASER TYPE:JPT /HUARAY / INNGU
MARKING SPEED:≤7m/s(275.6in/s)
MINIMUM LINE WIDTH:0.01mm(0.0004in)Depends on material
MINIMUM CHARACTER:0.2mm(0.008in) Depends on material
ELECTRICAL REQUIREMENTS:110V-240V/50Hz-60Hz
UV laser marking machine is mainly based on its unique low-power laser beam, especially suitable for the high-end market of ultra-fine processing.
It is very suitable for cosmetics, drugs, food and other macro-molecule material packaging surface marking. The marking effect is fine, clear and firmly,and better than ink jet code,no pollution.
It is widely used in marking and slicing of flexible PCB,silicon wafer micro-hole ,blind hole processing,LCD glass qr code , glassware surface punching, metal surface coating , plastic keys, electronic components, gifts, communication equipment, construction materials ,rubber and other non-metallic materials.
In addition to copper material, suitable for processing of more extensive material.
High quality beam, focusing spot is smaller, that can achieve hyper-fine marking.
Thermal impact area is very small, will not produce thermal effect, will not produce material burning problem.
Fast marking speed and high efficiency.
Stable performance, small size, low power consumption.
| BY- UV UV LASER MARKING MACHINE | |||
| 3W | 5W | 10W | |
| Marking Area | 110×110mm(4.3×4.3in) | ||
| 150×150mm(5.9×5.9in) Optional | |||
| 175×175mm(6.9×6.9in) | |||
| Working Area | 200*200mm | ||
| Maximum Thickness | 300mm(11.8in)@110×110mm | ||
| 250mm(9.8in)@150×150mm | |||
| 206mm(8.1in)@175×175mm | |||
| Laser Type | JPT /HUARAY / INNGU | ||
| Repetition Rate | 10-150 KHZ@INNGU | ||
| 20-150 KHZ@JPT | |||
| 1-200 KHZ@HUARAY | |||
| Marking Speed | ≤7m/s(275.6in/s) | ||
| Engraving Depth | ≤0.2mm(0.008in) | ≤0.4mm(0.016in) | ≤1mm(0.024in) |
| Minimum Line Width | 0.01mm(0.0004in) Depends on material | ||
| Minimum Character | 0.2mm(0.008in) Depends on material | ||
| Electrical Requirements | 110V-240V/50Hz-60Hz (According to local electricity supply). | ||
| Power consumption | 500W | 800W | 1000W |
| Marking Interface | USB connection. Compatible with Windows XP/Vista/7/8/10. | ||
| Communication Mode For Automation | TCP/IP,IO,RS232. | ||
| Red Dot Pointer | Since the laser beam is invisible,the Red Dot Pointer allows you to have a visual reference for locating where the laser will fire. | ||
| Cooling mode | Water cooling | ||
