Continuous handheld laser cleaning machine
Scope： Remove rust, remove paint, remove oil, remove oxide layer
Power supply voltage:110V/220V/380V
Laser power：1000w、1500w、2000w、3000w
Principle ：Laser cleaning machine is the use of high-energy laser beam irradiation workpiece surface, so that the surface of dirt,rust or coating evaporation or stripping, so as to achieve a clean cleaning object process.
Scope：Remove rust, remove paint, remove oil, remove oxide layer
Metal Remove rust, remove paint, remove oil, remove oxide layer
Mold residue cleaning: oil, rust, paint
Suitable for all kinds of molds: food mold, rubber mold, tire mold, automobile mold, electronic mold, mechanical mold, clothing shoes mold, precision instrument cleaning, etc
Wood cleaning： Remove paint and stains from wood
Car Cleaning: Car Rust Cleaning,Car hub chassis,Engine components,
Weld process： Pretreatment before and after weld
Stone cleaning： Cultural relics cleaning, stone figure cleaning, stone wall cleaning,graffiti cleaning,laser graffiti removal machine
Pipeline cleaning： Large size pipe, flange rust cleaning etc
Applicable to a wide range of industries:
Automobile parts, tires, hardware workpieces, circuit boards, food processing, electronics electrical, precision machinery, aircraft, ships, Railway construction, etc.
| Product name | Continuous handheld laser cleaning machine |
| Laser source | JPT MAX optional |
| Laser power | 1000w、1500w、2000w、3000w |
| Laser source | Fiber laser JPT laser wavelength 1064nm |
| Laser type | continuous |
| Length of conveying cable | 7m |
| Total power | 5500-9500W(with water cooling machine) |
| Cleaning efficiency | 15-45㎡/h |
| Scan width | 10-160mm |
| Cooling way | water cooling |
| Power supply voltage | 110V/220V/380V |
| Dimensions | 87*56*105cm |
| Net weight | 145kg(1000w) 165kg(1500w) 180kg(2000w) |
| Cleaning Method | Laser, non-contact |
| No Consumables | Only need electricity |
| Cleaning Effect | High cleanliness |
1. What is the speed of the laser cleaning machine?
Different laser types determine the cleaning speed of the cleaning machine, and the cleaning speed is within the range of 0.5m²/h-15m²/h
2.Is it possible to clean the mold?
Yes，You can give us your mailbox, and we will send the video of the laser cleaning machine cleaning the mold to your mailbox
3.The effect of paint and rust removal Very good, you can refer to our video below
4.Is there any damage to the cleaning material?

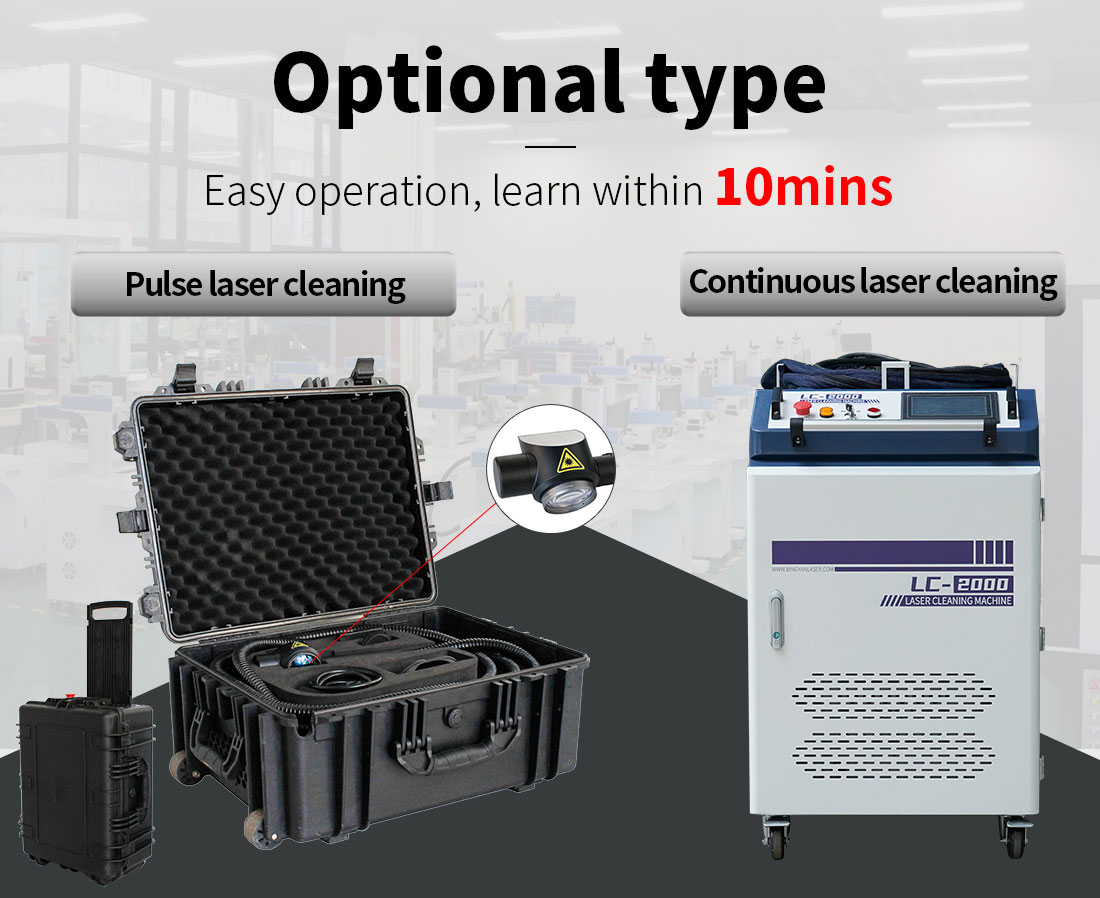

Depends on what type you need, the pulse type has a finer cleaning effect, and the continuous type has a faster cleaning speed,Relative damage of material, pulse type is less than continuous type.
5.Language interface
Support Chinese and English, and language settings can also be set according to customer needs
6.lassification of cleaning
objects oxide layer/rusty scale/Paint, coating/Dirt, carbon layer/Others
7.Shipping and Warranty

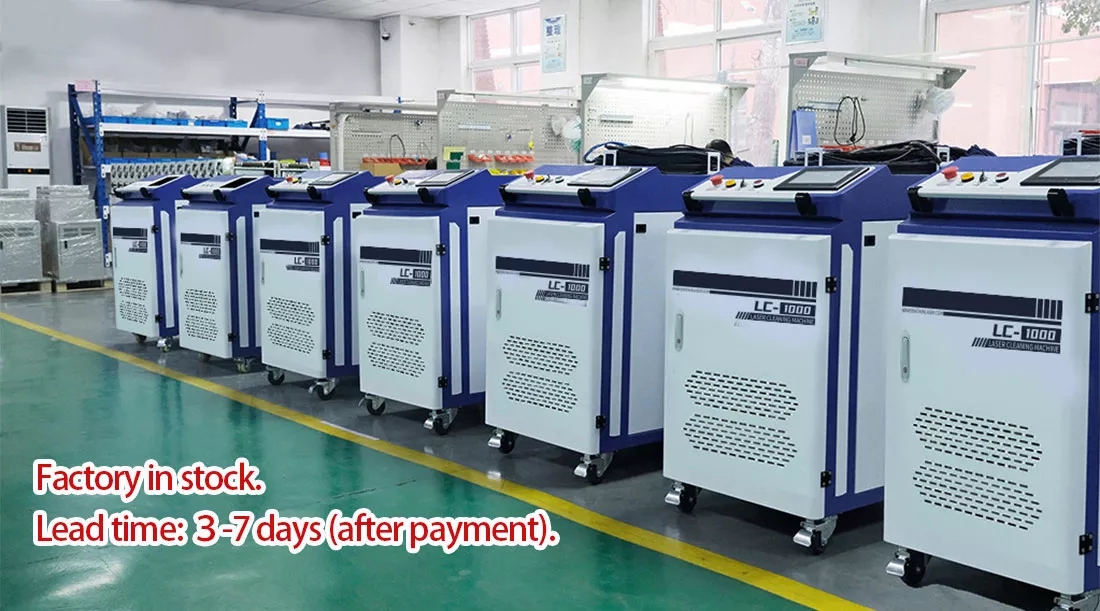

Stock available,shipping quickly, delivery to door.
Machine warranty one year,Free after-sales maintenance
If you want to know more details, pls contact us without hesitate.
1. Who are we?
We are based in Hena,China,start from 2010,sell to Domestic Market(50.00%),North America(8.00%),Eastern Asia(8.00%),Western Europe(8.00%),Sourh America(4.00%),Southeast Asia(4.00%),Africa(4.00%),Oceania(4.00%),Northern Europe(4.00%),Southern urope(4.00%),South Asia(2.00%).There are total about 11-50 people in our office.
2.How can we guarantee quality?
The product passes through 5 times examination, strictly controls the quality. Incoming inspection of main parts, Pre-assembly inspection, parameter detection, laser power detection, 48-hour aging test.
Always a pre-production sample before mass production;
Always final Inspection before shipment.
3.What should I do when something goes wrong with the laser?
We offer a one-year warranty. In warranty, we will provide the broken items free of charge. Beyond the warranty period, we still provide maintenance service.
4.Are you a manufacturer or a trading company?
We are a manufacturer established in 2010 ,now in Luoyang CN. Committed to providing the majority of users with economic,high-quality laser equipment. Welcome to our factory.
5.How long does it take to learn the laser?
The machine is easy to learn with teaching video, also we can help you to learn the laser online. Usually it will take a few hours to operate the laser ,But it will take a bit of trial and error to learn what speed and power settings to use with different materials. So we include a comprehensive guide with your system that has recommended speed and power settings for various materials with which you will be working.
6.Will the laser machine be safe during transport?
(1) Inner: plastic stretch film and white foam.
(2)Middle: small pieces of wood and screws.
(3)outside: standard export wooden case.
So,the laser machine will send to you safely. In case the machine was damaged , please contact us ,We will process the replacement as soon as possible to ensure that it arrives in time.
Please send us your request and we will reply to you within 24 hours.
