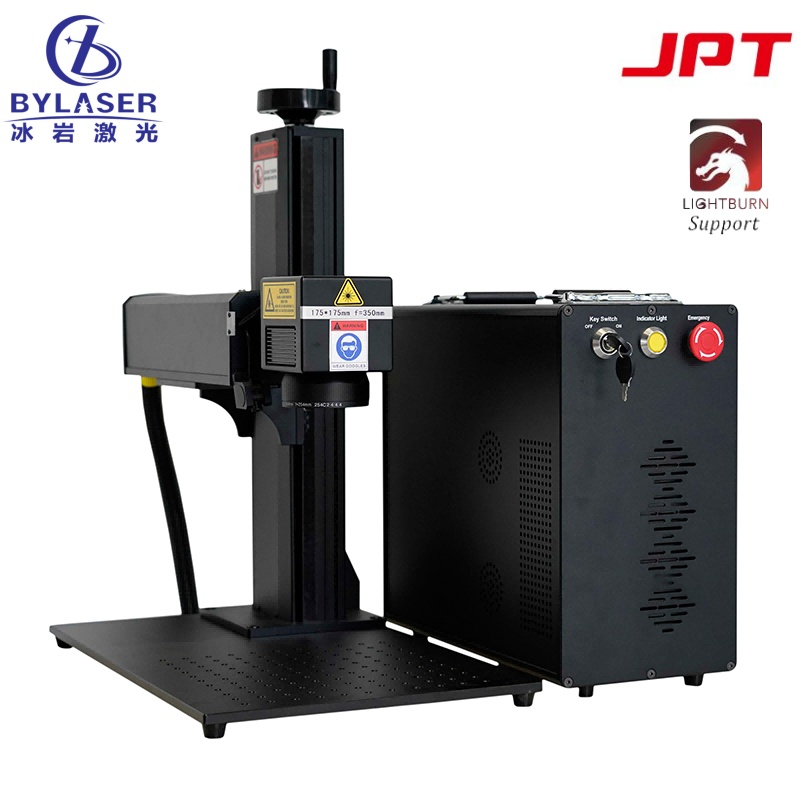

Portable Split Fiber Laser Marking Machine

The Portable Split Fiber Laser Marking machine is an efficient and reliable choice for marking on various materials.

With advanced technology and easy-to-use design, it provides cost-effective solutions for all types of marking needs.

Power:  20W/ 30W / 50W/ 60W / 80W / 100W/120W/200W

CONTACT US:

Email:[email protected]

Whatsapp: +86 137 8196 1057



Our advantage

The Split Fiber Laser Marking Machine has a split design and consists of two parts: a separate laser source and a laser head connected via a flexible fiber optic cable for easy integration. The whole machine is small in size and light in weight, easy to transport.
Adopting advanced fiber laser technology, the beam quality is excellent for precise and permanent marking.
It has stable performance and fast marking speed. Supporting a variety of marking and automatic coding, it is ideal for different industries to accurately identify and trace products.






Samples

Features:

1. Maintenance-free and long service life:

Our system uses a laser diode as the pump source and is designed with a fully sealed optical path. As a result, it is extremely reliable, with an average runtime of over 100,000 hours and virtually no maintenance.

2. Fast processing speeds:

Utilizing our cutting-edge technology, processing speeds are 5-10 times faster than traditional laser marking machines. This ensures that you get your marking job done efficiently and quickly.

 3. Excellent machine quality

The parts used in the machine are all famous brands—for example, JPT, Raycus laser source, ZBTK, Sino-Galvo, and so on.

4. 0 consumables

The whole machine does not need to replace any accessories within 5-10 years (under good maintenance conditions).

5. Convenient and easy to use

Integrated air cooling system, no water cooler required. No need to replace or clean lenses, etc.




lasermarkingsamples



technical parameter
Machine Dimension 785*645*425mm
Weight 53-60Kg
Control Software EZCAD / LIGHTBURN
power 20w /30w /50w /80w/ 100w /120w
Laser Type RAYCUS/IPG/JPT Optional
Marking area 70*70mm, 110*110mm, 150*150mm, 175*175mm, 220*220mm, 300*300mm
Electrical Requirements 110V-240V/50Hz-60Hz(According to local electricity supply).
Optional  Rotary, Cutting Fixture, Purifier

blacklasermarkingmachine4

blacklasermarkingmachine

blacklasermarkingmachine3

blacklasermarkingmachine2



blacklasermarkingmachine





Our Advantage
  • We have exported to more than 80 countries including the United States, the United Kingdom, Russia, Canada, Mexico, etc with CE, FDA, and ISO9001 certification
  • Professional engineer teams can support customized automatic equipment services based on different requirements.
  • Equipped with English user manual, VCD training video & tutorials;
    Easy to operate, customer service guidance, and convenient for new users to learn quickly.
  • Two-year warranty; The Contract can guarantee your rights.
  • Warranty service: video technical support, online support, after-sale repair service
  • Supporting customizable cabinet color and style (closed type, Desktop type, flight line, etc.)





Company R&D



Certificate





FAQ

1.  Why Choose Fiber Laser Marking Machine Supplier BY LASER?

BY Laser is committed to providing exceptional customer support and service. We provide comprehensive after-sales service, including technical support, training, and troubleshooting guidance. This will ensure you a smooth and satisfying experience throughout the entire process of using your laser marking equipment. We guarantee high-quality products, advanced technology, versatility, cost-effectiveness, excellent support, and customization options. These factors make BY Laser a trusted and reliable choice in the market.

2. Is laser marking permanent?

Yes, laser marking produces a mark that is permanent and resistant to abrasion, chemicals, and heat.

3. What is the difference between laser marking and laser engraving?

Laser marking is a broad term that includes processes such as engraving, etching and annealing. Laser engraving is a type of laser marking that creates a mark by removing part of the surface of a material with a laser beam.

4. Can laser marking be colored?

Yes, laser marking can produce colored marks on certain materials such as stainless steel and titanium. Black markings can be made on aluminum oxide.
