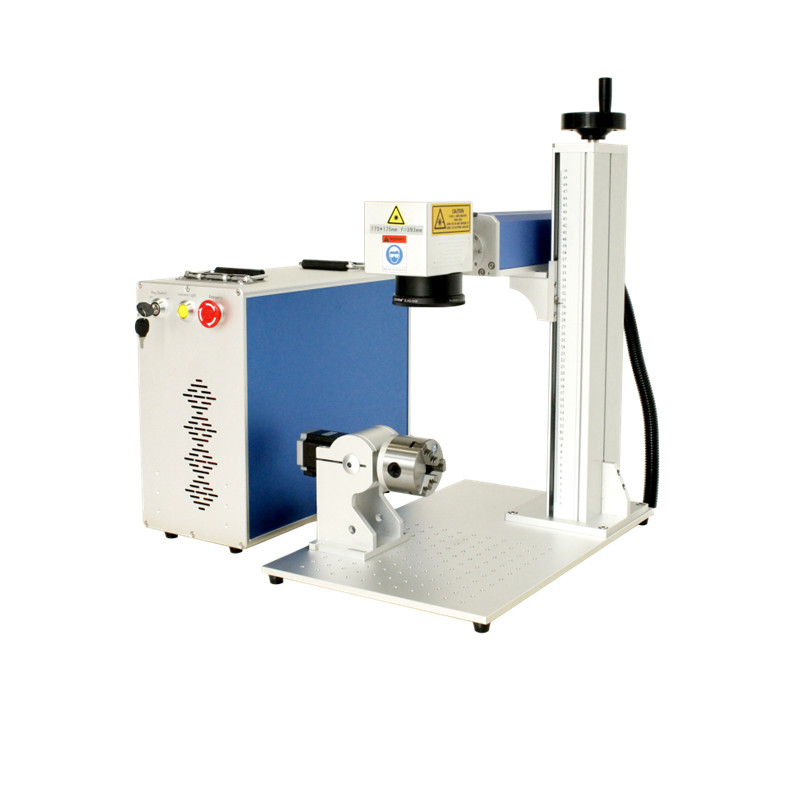

Portable 3d 20w 30w 50w 80w 100w Jpt Raycus Mopa M7 Engraver Rotary Fiber Laser Engraving Marking Machine

Price: $1600-$8000(Depends on wattage and laser Type)

high-performance fiber laser engraver
Marking clear and permanent marks on your products
Marking material
Metal material: gold, silver, copper, iron, aluminum, stainless steel, etc
Plastic material: ABS ink nylon PVC, pp, pe epoxy resin, etc
Can cut thin metal, mopa color marking, deep engraving, 3d surface relief engraving, large area carving

JPT MOPA M7:stainless steel color marking, aluminium oxide black marking, matel and plastic High power marking above 50w



Whatsapp: +86 133 3387 1331

Our advantage

With 12 years of experience in laser equipment and more than 50 different product types, we can almost meet all your needs for marking machines

We sell laser marking machines as well as laser source

Lasers Source can be sold separately (Min Orde:5 sets)

Lasers Source has JPT,MAX,IPG
Parts:Laser lens,2D/3D workbench,Rotary,Cutting parts.



Product advantages



High configuration and quality,with marking high precision speed and stability, no pollution, low noise and other significant characteristics.
Laser power : 20w/30w/50w/60w/80w/100w(optional)
Laser source : JPT, MAX, IPG ,RAYCUS (optional)

Lens,Marking area:70*70mm, 110*110mm, 150*150mm, 175*175mm, 220*220mm, 300*300mm (Contact us for larger area engraving, we have large format machines)



● JPT LP and MOPA series laser with high peak power and excellent beam quality, 100,000 hours working life
●Positioning: red light positioning system helps you quickly lock the marking position,no need ruler.
●EZCAD 2.0 and JCZ-LMCV4 control board, ensuring higher stability and powerful functions
●Galvanometer system: the imported high-speed galvanometer scanning head can improve the marking speed up to 7000mm/s.
● Compatible with Coreldraw, AutoCAD, Photoshop, PLT, PCX, DXF, BMP,etc
● Support SHX,ITF fonts; automatic encoding, printing serial number, batch number, date, barcode OR code, automatic jump number, etc



Application industry



●Jewelry supplier: metal jewelry,gold and silver laser cutting , necklace, 3D effect, photos marking, metal cards, dog tags, cups, customization, etc.

●Electronic Components: Pcb circuit board,Iphone,IPAD,Resistors,Capacitors,Chips,etc.
●Mechanical Parts: Bearings, Gears, Standard Parts, Motor, etc.
●Electronics: Iphone, IPAD, Ipod, Keyboard and more standard parts.
●Instrument: Panel Board, Nameplates, Precision equipment, etc.
●Hardware Tools: Knives, Tools, Measuring Tools, Cutting Tools, etc.
●Automobile Parts: Pistons&Rings, Gears, Shafts,Bearings,Clutch,Lights
●Medical appliances: scissors, pliers, etc.

If you need to mark leather, wood, glass and other materials, it is recommended to use co2 and UV marking machines. please contact us and we will recommend suitable machines for you: [email protected]



Free test samples -We can carry out free marking effect tests according to your product material

Video Live-You can connect with our sales consultants to watch the production process and the operation of the machine in online video.



Sample



technical parameter







Name BY-20GS BY-30GS BY-50GS
Machine Dimension 785*645*425mm
Weight 53-60Kg
Lens,Marking area 70*70mm, 110*110mm, 150*150mm, 175*175mm, 220*220mm, 300*300mm
Maximum Material Thickness 206mm(8.1in), 250mm(9.8in), 300mm(11.8in)
Optional Rotary D69mm,D80mm,D100mm, D125mm
Control Software EZCAD2.0, EZCAD3.0, Electric Z-axis
Deep Engraving 2.5D,3D
Support System USB connection.Compatible with Windows XP/Vista/7/8/10/11
Laser Type RAYCUS/IPG/JPT Optional
Repetition Rate(Frequency) [email protected]/ [email protected]/ [email protected]
Marking Speed ≤8000mm/s
Minimum Line Width 0.01mm(0.0004in)                     Depends on the material
Minimum Character 0.2mm(0.008in)                         Depends on the material
Electrical Requirements 110V-240V/50Hz-60Hz(According to local electricity supply).
Communication Mode For Automation TCP/IP,IO,RS232.
Marking Content Barcodes,serial numbers,text,vector,and logos.
Red Dot Pointer Since the laser beam is invisible,the Red Dot Pointer allows you
to have a visual reference for locating where the laser will fire.



Delivery

Support payment:

●DHL/UPS/FEDEX is Optional,Please contact us for tariff and freight
●Air:delivery time:5-7 days(1 set) 7-15 days(5-30 sets)
●Support Sea,air and train transportation
●The order is more than 5 sets, please place the order in advance.



Customization

Non-standard automation customization(Min. order 1 set)

Customized logo(Min. order 1 set)
Graphic customization(Min. order 1 set)
Customized packaging(Min. order 1 set)



Packaging and after-sales service

●Equipped English user manual, VCD training video & tutorials;
Easy to operate, customer service guidance, convenient for new users to learn quickly.
● Two-year warranty; Contract can guarantee your rights.
● Warranty service: video technical support, online support, after-sale repair service

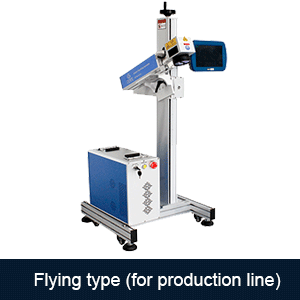

Supporting customizable cabinet color and style (closed type, Desktop type,flight line, etc.)

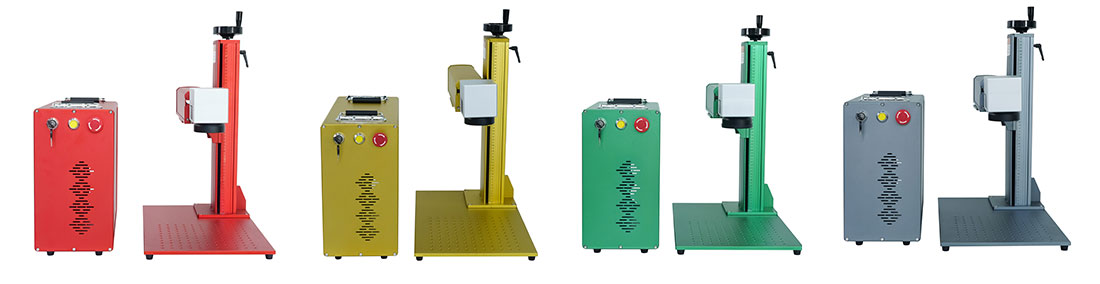

Color cabinet of laser marking machine



We are looking for worldwide distributors

Support ODM ,OEM

● Machine distributors(laser marking machine, laser cleaning machine, laser welding machine)
● Accessory distributors(laser source, lens, rotary, etc.)

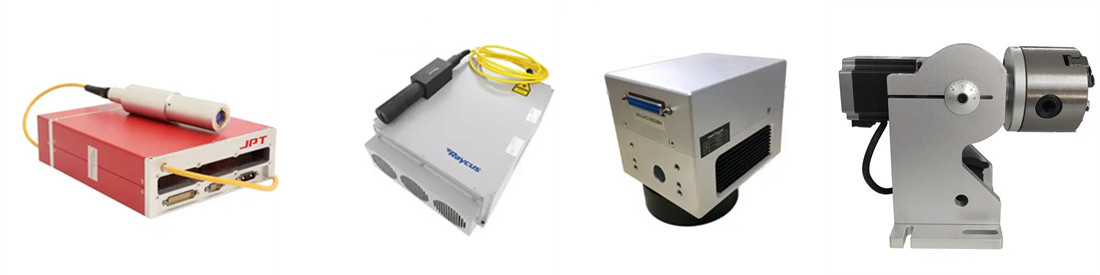

Lasers Source

Professional engineers team can support customize automatic equipment service based on different requirements.
We have exported to more than 100 countries including the United States, the United Kingdom, Russia, Canada, Mexico, etc with CE, FDA and ISO9001 certification

please contact us.  [email protected]







FAQ

1. Q: Are you a manufacturer or a trading company?

A: We are a manufacturer established in 2010 ,now in Luoyang CN. Committed to
providing the majority of users with economic, high-quality laser equipment. Welcome to our factory.
2. Q: How long does it take to learn the laser?
A: The software is easy to learn with teaching video, also we can help you to learn the laser online. Usually
it will take a few hours to operate the laser ,But it will take a bit of trial and error to learn what speed and power settings to use with different materials. So we include a comprehensive guide with your system that has recommended speed and power settings for various materials with which you will be working.
3. Q: How deep can it engrave into metal?
A: All metals can be engraved into with some depth; However, some metals are more amenable to depth engraving. Softer aluminum material will engrave with depth with only a few passes. The best way to test your material is with our Applications Lab.
4. Q: Can I use laser marking machine to marking my product and material?
According to the different material to select the appropriate laser marking machine
Laser fiber laser marking machine: metal, plastic, stone and etc.
CO2 laser marking machine: wood, leather, ceramics, paper cutting, acrylic, plastic bottles, etc
UV laser marking machine: marking glass crystal, chip, PCB circuit board and other ultra-fine processed materials
5. Q: Will the laser machine be safe during transport?
A: (1) Inner: plastic stretch film and white foam.
(2)Middle: small pieces of wood and screws.
(3)outside: standard export wooden case. So,the laser machine will send to you safely. In case the machine was damaged , please contact us ,We will process the replacement as soon as possible to ensure that it arrives in time .
6. Q: What should I do when something goes wrong with the laser?
A: We offer a two-year warranty. In warranty, we will provide the broken items free of charge. Beyond the warranty period, we still provide maintenance service.
