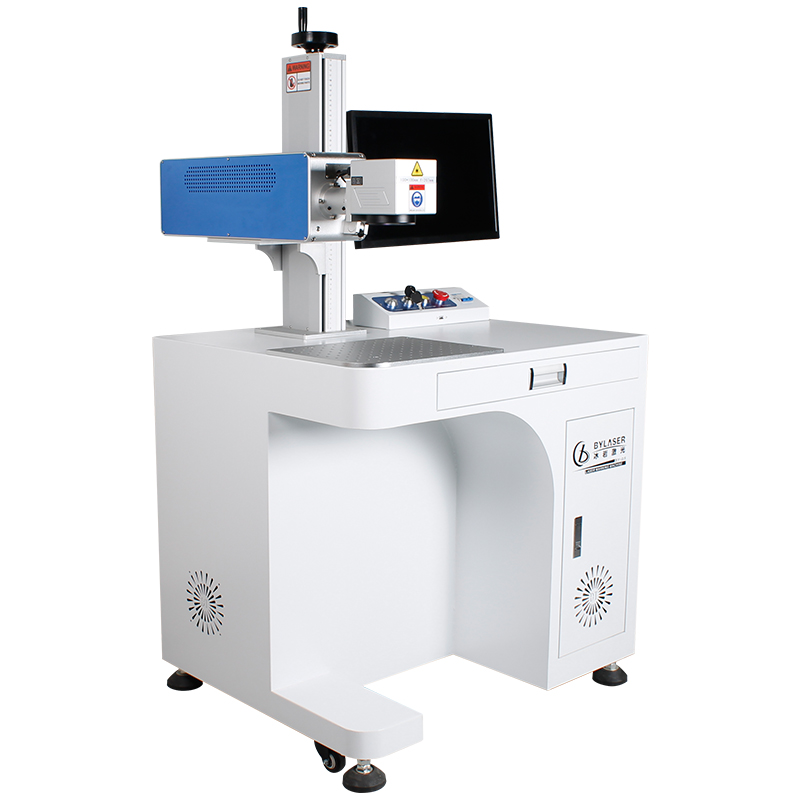

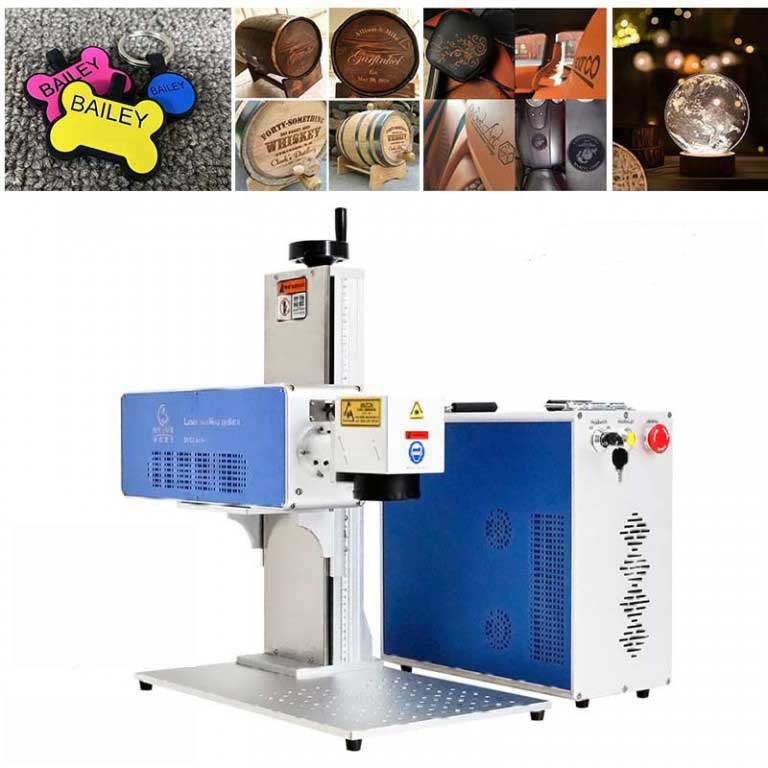

Portable split type CO2 laser marking machine

MODEL:BY-CS-B

LASER TYPE:DAVI

MARKING SPEED:≤7m/s(275.6in/s)

MINIMUM LINE WIDTH:0.01mm(0.0004in)Depends on material

MINIMUM CHARACTER:0.2mm(0.008in) Depends on material

ELECTRICAL REQUIREMENTS:110V-240V/50Hz-60Hz

APPLICATION

Mainly used in some occasions that require more precision . Used in food, medicine, wine, electronic components, integrated circuit (IC), electrical appliances, mobile phone communications, building materials, PVC pipe and other industries. Suitable for the material of wood, glass, acrylic, paper and so on.

FEATURES

Marking precision, speed, engraving depth arbitrary control.

Stable laser power, suitable for all non-metallic materials.

No consumable materials,lowprocessing cost,high laser life of 20000hours.

Clear marking, not easy to wearoff, small power consumption, environmental protection, energy saving.

Simple operating system, flexible and convenient typesetting, compatible with AUTOCAD, CORELDRAW,PHOTOSHOP and other software output files.

Characters, Numbers, bar codes, qr codes, graphics is available, support PLT,DXF, AI, BMP and other file formats, SHX, TTF font librarycan also be directly used.

The system can automatically encode and print the serial number ,batch number, date and so on.

PARAMETERS
BY-CS   CO2  LASER MARKING MACHINE
20W 30W 50W
Marking Area 110×110mm(4.3×4.3in)
150×150mm(5.9×5.9in)
175×175mm(6.9×6.9in)                         Optional
200x200mm(7.9×7.9in)
300x300mm(11.8×11.8in)
Working Area 200*200mm
Maximum Thickness 300mm(11.8in)@110×110mm
250mm(9.8in)@150×150mm
206mm(8.1in)@175×175mm
Laser Type DAVI
Repetition Rate 1-20kHZ
Marking Speed ≤7m/s(275.6in/s)
Engraving Depth ≤0.4mm(0.016in)
Minimum Line Width 0.1mm(0.004in)Depends on material
Minimum Character 0.2mm(0.008in) Depends on material
Electrical Requirements 110V-240V/50Hz-60Hz   (According to local electricity supply).
Power consumption 800W
Marking Interface USB connection. Compatible with Windows XP/Vista/7/8/10.
Communication Mode For Automation TCP/IP,IO,RS232.
Red Dot Pointer Since the laser beam is invisible,the Red Dot Pointer allows you to have a visual reference for locating where the laser will fire.
