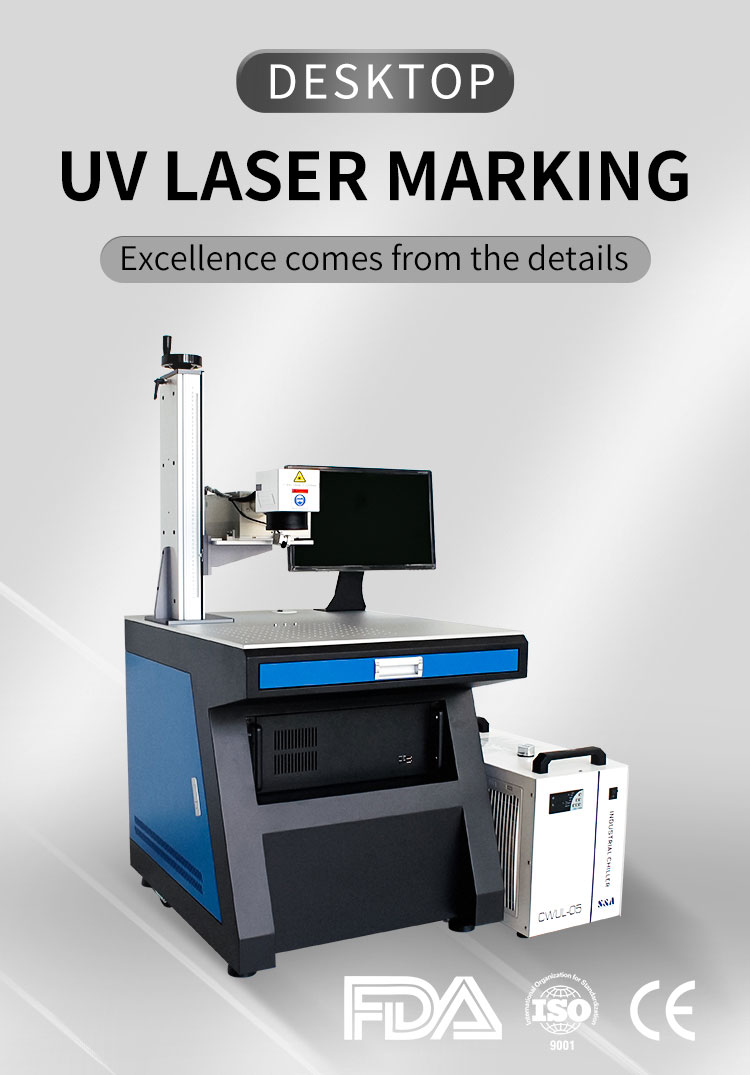

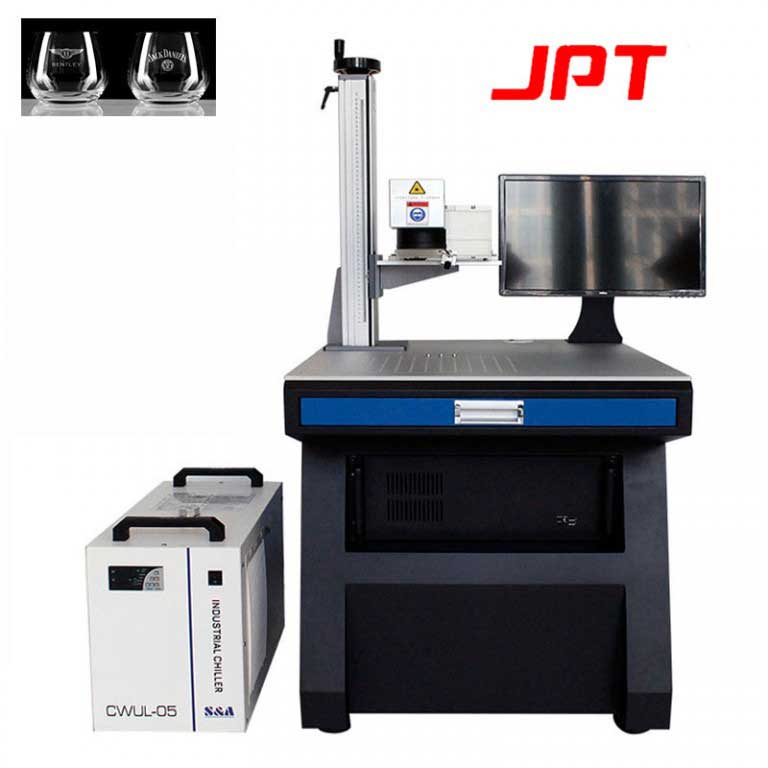

UV Laser Marking Machine
Laser power : 3w/5w/10w(optional)
Laser source: JPT / Raycus/Huaray / INNGU LASER (optional)
The UV laser eliminates the risk of thermal effects with its unique low-power laser beam predominantly. Marking surfaces are flatter and also durable.
UV laser markers are suitable for virtually any plastic, resin, glass, rubber, silicon crystal, or ceramic requirement, as well as any metal marking or machining application where the effect of laser marking on the surface finish of the material needs to be considered.
Machine Features:
1. High-end configuration, JPT laser source technology, thin and small laser beam, fine marking, fiber laser marking machine accuracy can reach 0.01mm, suitable for products that require high marking accuracy
2. Stable power and long service life.
3. The beam quality is much better, with no damage to the workpiece.
4. The operation is simple, the mark is clear, firm, and pollution-free, and the marking speed is fast.
5. Glass material scribing, drilling, silicon wafer graphics cutting, etc.
Applications

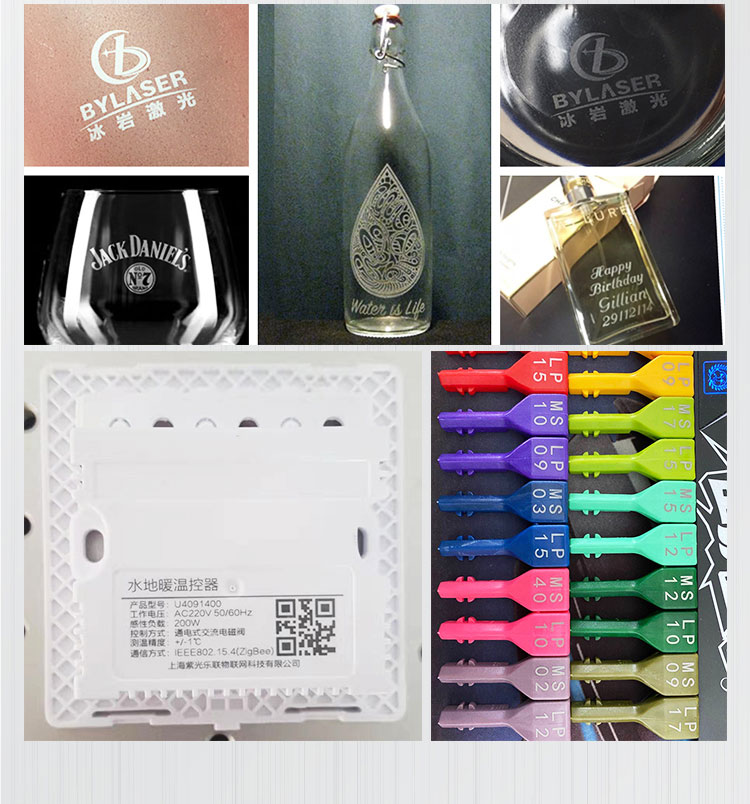

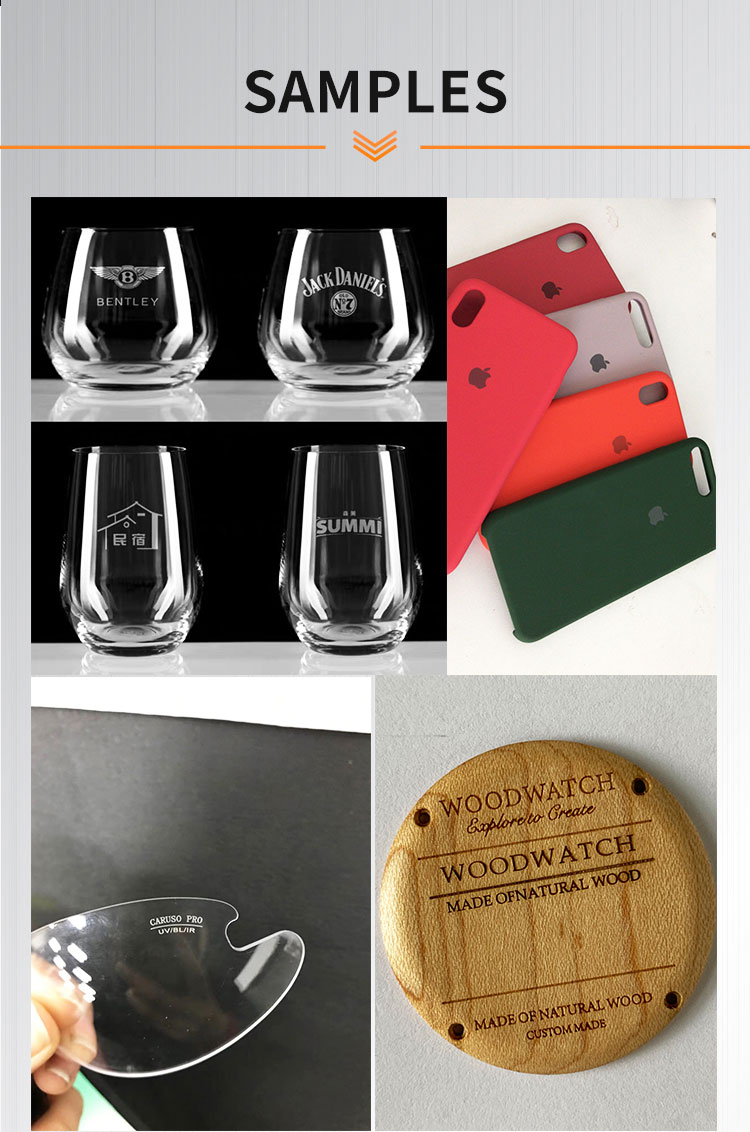

1. Glass and crystal products, automobile glass, arts and crafts, ceramic cutting or engraving, watches and glasses.

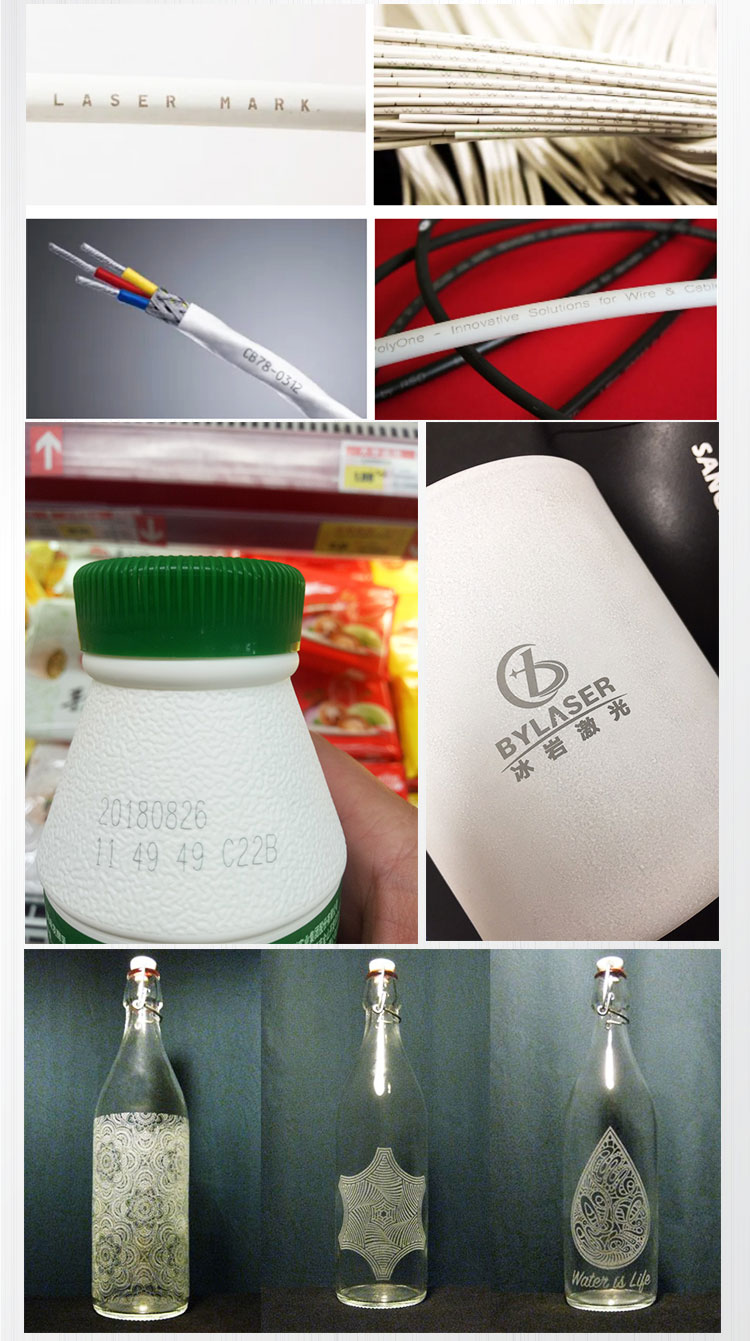

2. Electronic components, PCB circuit boards, chips, chargers, wires, computer accessories keyboards, plastic buttons, mobile phone accessories (mobile phone screens, LCD screens), etc.
3. Cosmetics, pharmaceuticals, food and other packaging materials for marking and microporous drilling.
4. Hardware machinery, tools, measuring tools, knives, bathroom faucets, instruments, optical devices, aerospace, military supplies.
q
| Laser Power/Product Model | BY-3UV A/B | BY-5UV A/B | BY-10UV A/B |
| Lens,Marking area | 70*70mm, 10*110mm, 150*150mm, 175*175mm, 220*220mm, 300*300mm | ||
| Maximum Material Thickness | 300mm(11.8in),250mm(9.8in),206mm(8.1in) | ||
| Laser Type | JPT / Huaray / INNGU LASER (optional) | ||
| Repetition Rate(Frequency) | 20-150KHZ(at)JPT | ||
| Output power adjustment range | 10%-100% | ||
| Marking Speed | ≤7m/s(275. 6in/s) | ||
| Optional Rotary | D69mm,D80mm,D100mm, D125mm | ||
| Control Software | EZCAD2.0, EZCAD3.0, Electric Z-axis | ||
| Deep Engraving | 2.5D,3D | ||
| Support System | USB connection.Compatible with Windows XP/Vista/7/8/10/11 | ||
| Minimum Line Width | 0.01mm(0.0004in) Depends on the material | ||
| Minimum Character | 0.2mm(0.008in) Depends on the material | ||
| Communication Mode For Automation | TCP/IP,IO,RS232. | ||
| Marking Content | Barcodes,serial numbers,text,vector,and logos. | ||
| Red Dot Pointer | Since the laser beam is invisible,the Red Dot Pointer allows you | ||
| to have a visual reference for locating where the laser will fire. | |||
| Power consumption | 500W | 800W | 1000W |
| Electrical Requirements | 110V-240V/50Hz-60Hz(According to local electricity supply). | ||
Free test samples -We can carry out free marking effect tests according to your product material
Video Live- You can connect with our sales consultants to watch the production process and the operation of the machine in online video.
●Equipped with English user manual, VCD training video ＆ tutorials;
Easy to operate, customer service guidance, and convenient for new users to learn quickly.
● One-year warranty; The Contract can guarantee your rights.
● Warranty service: video technical support, online support, after-sale repair service
1. Q: Are you a manufacturer or a trading company?
A: We are a manufacturer established in 2010 , now in Luoyang CN. Committed to
providing the majority of users with economical, high-quality laser equipment. Welcome to our factory.
2. Q: How long does it take to learn the laser?
A: The software is easy to learn with teaching videos, also we can help you to learn the laser online. Usually,
it will take a few hours to operate the laser,but it will take a bit of trial and error to learn what speed and power settings to use with different materials. So we include a comprehensive guide with your system with recommended speed and power settings for various materials with which you will be working.
3. Q: How deep can it be engraved into metal?
A: All metals can be engraved into with some depth; However, some metals are more amenable to depth engraving. Softer aluminum material will engrave with depth with only a few passes. The best way to test your material is with our Applications Lab.
4. Q: Can I use a laser marking machine to mark my product and material?
A: According to the different materials to select the appropriate laser marking machine
Laser fiber laser marking machine: metal, plastic, stone etc.
CO2 laser marking machine: wood, leather, ceramics, paper cutting, acrylic, plastic bottles, etc
UV laser marking machine: marking glass crystal, chip, PCB circuit board and other ultra-fine processed materials
5. Q: Will the laser machine be safe during transport?
A: (1) Inner: plastic stretch film and white foam.
(2) Middle: small pieces of wood and screws.
(3) outside standard export wooden case. So, the laser machine will be sent to you safely. In case the machine was damaged, please contact us, We will process the replacement as soon as possible to ensure that it arrives in time.
6. Q: What should I do when something goes wrong with the laser?
A: We offer a One-year warranty. In warranty, we will provide the broken items free of charge. Beyond the warranty period, we still provide maintenance service.
