Price: $1750-$8000（Depends on wattage and laser Type）

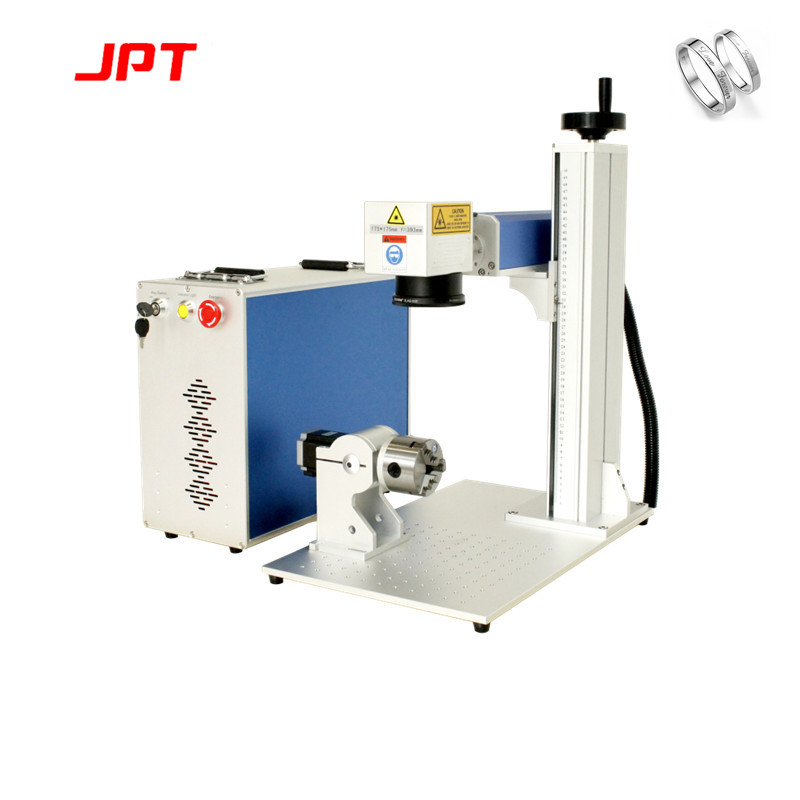

high-performance fiber laser engraver
Marking clear and permanent marks on your products
Marking material
Metal material: gold, silver, copper, iron, aluminum, stainless steel, etc
Plastic material: ABS ink nylon PVC, pp, pe epoxy resin, etc
Can cut thin metal, mopa color marking, deep engraving, 3d surface relief engraving, large area carving
JPT MOPA M7：stainless steel color marking, aluminium oxide black marking, matel and plastic High power marking above 50w
With 12 years of experience in laser equipment and more than 50 different product types, we can almost meet all your needs for marking machines
Our product is ideal for manufacturers and businesses who want the best machine for their marking needs and Jewelry supplier
Professional engineers team can support customize automatic equipment service based on different requirements.
We have exported to more than 100 countries including the United States, the United Kingdom, Russia, Canada, Mexico, etc with CE, FDA and ISO9001 certification
Product advantages
High configuration and quality,with marking high precision speed and stability, no pollution, low noise and other significant characteristics.
Laser power : 20w/30w/50w/60w/80w/100w(optional)

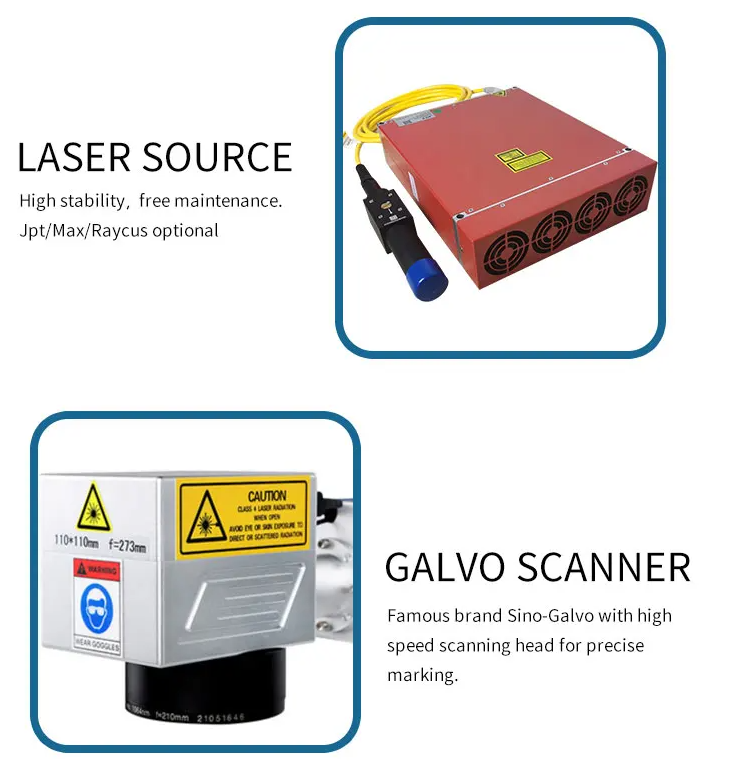

Laser source : JPT, MAX, IPG ,RAYCUS (optional)
● JPT LP and MOPA series laser with high peak power and excellent beam quality, 100,000 hours working life
●Positioning: red light positioning system helps you quickly lock the marking position,no need ruler.
●EZCAD 2.0 and JCZ-LMCV4 control board, ensuring higher stability and powerful functions
●Galvanometer system: the imported high-speed galvanometer scanning head can improve the marking speed up to 7000mm/s.
● Compatible with Coreldraw, AutoCAD, Photoshop, PLT, PCX, DXF, BMP,etc
● Support SHX,ITF fonts; automatic encoding, printing serial number, batch number, date, barcode OR code, automatic jump number, etc
Application industry
●Jewelry supplier: metal jewelry,gold and silver laser cutting , necklace, 3D effect, photos marking, metal cards, dog tags, cups, customization, etc.
●Electronic Components，Mechanical Parts,Electronics,Instrument,Hardware Tools,Automobile Parts,Medical appliances, etc.
If you need to mark leather, wood, glass and other materials, it is recommended to use co2 and UV marking machines. please contact us and we will recommend suitable machines for you： [email protected]
Free test samples -We can carry out free marking effect tests according to your product material
Video Live-You can connect with our sales consultants to watch the production process and the operation of the machine in online video.
| Name | BY-20GS | BY-30GS | BY-50GS |
| Machine Dimension | 785*645*425mm | ||
| Weight | 53-60Kg | ||

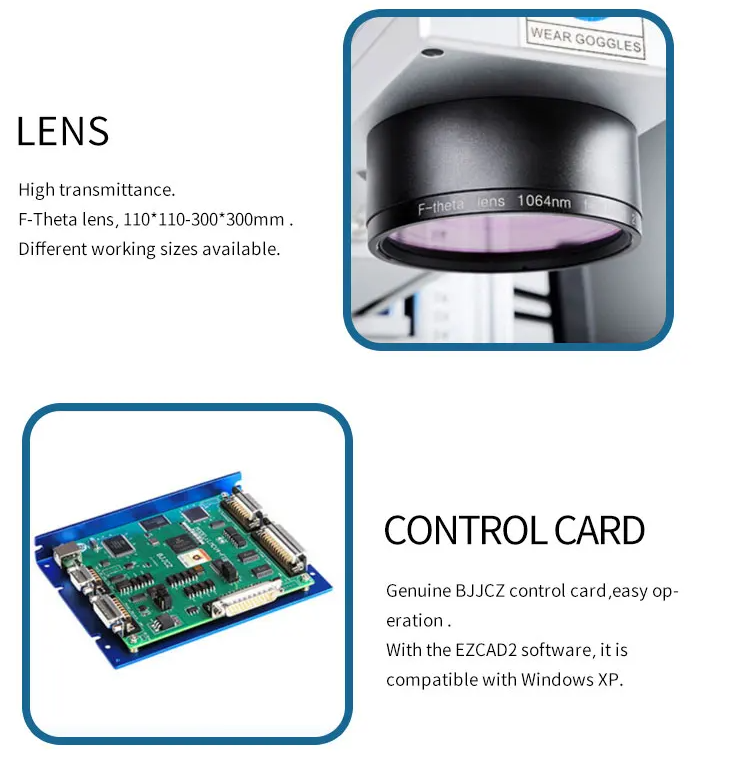

| Lens,Marking area | 70*70mm, 10*110mm, 150*150mm, 175*175mm, 220*220mm, 300*300mm | ||
| Maximum Material Thickness | 206mm(8.1in), 250mm(9.8in), 300mm(11.8in) | ||
| Optional Rotary | D69mm,D80mm,D100mm, D125mm | ||
| Control Software | EZCAD2.0, EZCAD3.0, Electric Z-axis | ||
| Deep Engraving | 2.5D,3D | ||
| Support System | USB connection.Compatible with Windows XP/Vista/7/8/10/11 | ||
| Laser Type | RAYCUS/IPG/JPT Optional | ||
| Repetition Rate(Frequency) | [email protected]/ [email protected]/ [email protected] | ||
| Marking Speed | ≤7m/s(275.6in/s) | ||
| Minimum Line Width | 0.01mm(0.0004in) Depends on the material | ||
| Minimum Character | 0.2mm(0.008in) Depends on the material | ||
| Electrical Requirements | 110V-240V/50Hz-60Hz(According to local electricity supply). | ||
| Communication Mode For Automation | TCP/IP,IO,RS232. | ||
| Marking Content | Barcodes,serial numbers,text,vector,and logos. | ||
| Red Dot Pointer | Since the laser beam is invisible,the Red Dot Pointer allows you to have a visual reference for locating where the laser will fire. |
||
Delivery
Support payment:
●DHL/UPS/FEDEX is Optional,Please contact us for tariff and freight
●Air:delivery time:5-7 days(1 set) 7-15 days(5-30 sets)
●Support Sea,air and train transportation
●The order is more than 5 sets, please place the order in advance.
Customization
Non-standard automation customization(Min. order 1 set)
Customized logo(Min. order 1 set)
Graphic customization(Min. order 1 set)
Customized packaging(Min. order 1 set)
Packaging and after-sales service
●Equipped English user manual, VCD training video ＆ tutorials;
Easy to operate, customer service guidance, convenient for new users to learn quickly.
● Two-year warranty; Contract can guarantee your rights.
● Warranty service: video technical support, online support, after-sale repair service
We are looking for worldwide distributors
Support ODM ,OEM
● Machine distributors(laser marking machine, laser cleaning machine, laser welding machine)
● Accessory distributors(laser source, lens, rotary, etc.)
Lasers Source can be sold separately (Min Orde:5 sets)
Lasers Source has JPT,MAX,IPG
Parts:Laser lens,2D/3D workbench,Rotary,Cutting parts.
How to choose laser marking machine

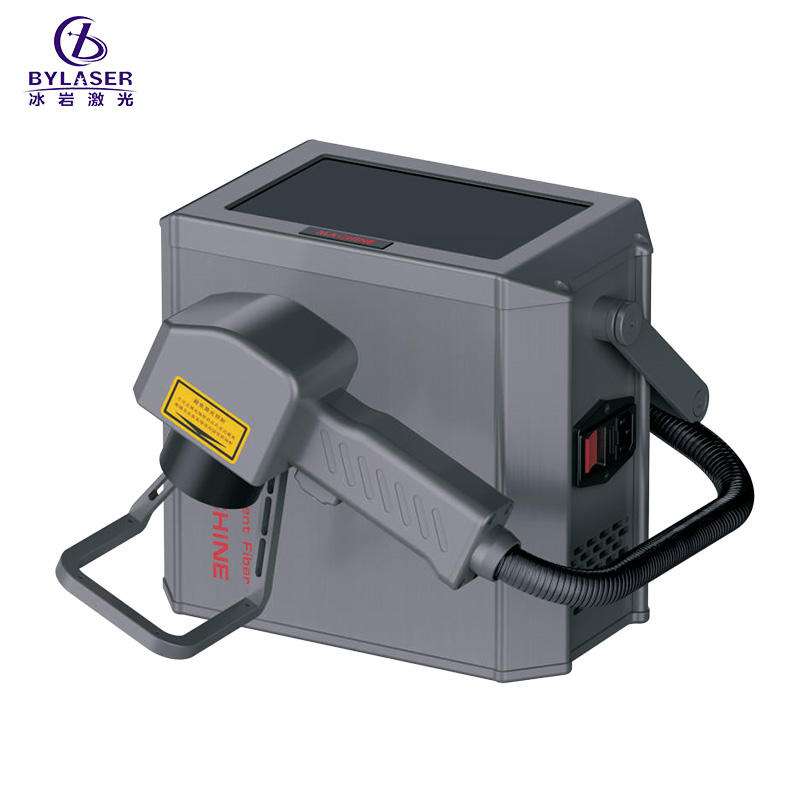

Portable Laser marking machine:Small size, light weight, suitable for individuals and jewelry suppliers

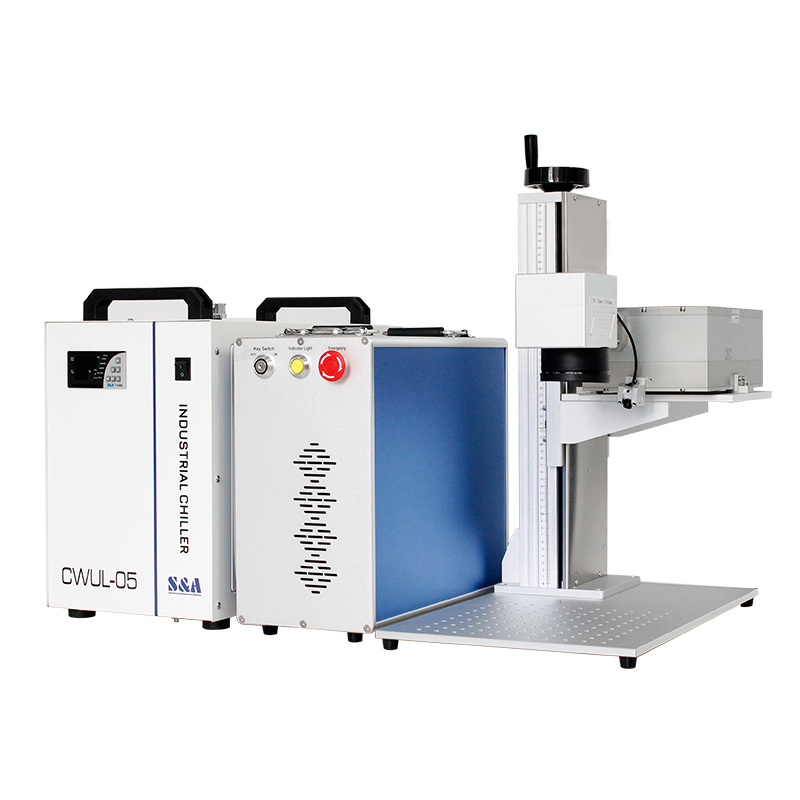

Desktop: suitable for enterprises and factories to mark mechanical parts, hardware tools, plastic products, medical devices, etc
Machine parts, hardware tools, plastic products, medical instruments, etc
Flying type machine(for production line)：Specially designed for the factory production line to meet the requirements of automatic high-speed marking,suit for marking Pipeline cable ，Packing box date，bottle cap
If need handheld fiber laser marker、safety enclosed fiber laser marker、Non-Standard Automation Equipment, please contact us. [email protected]
